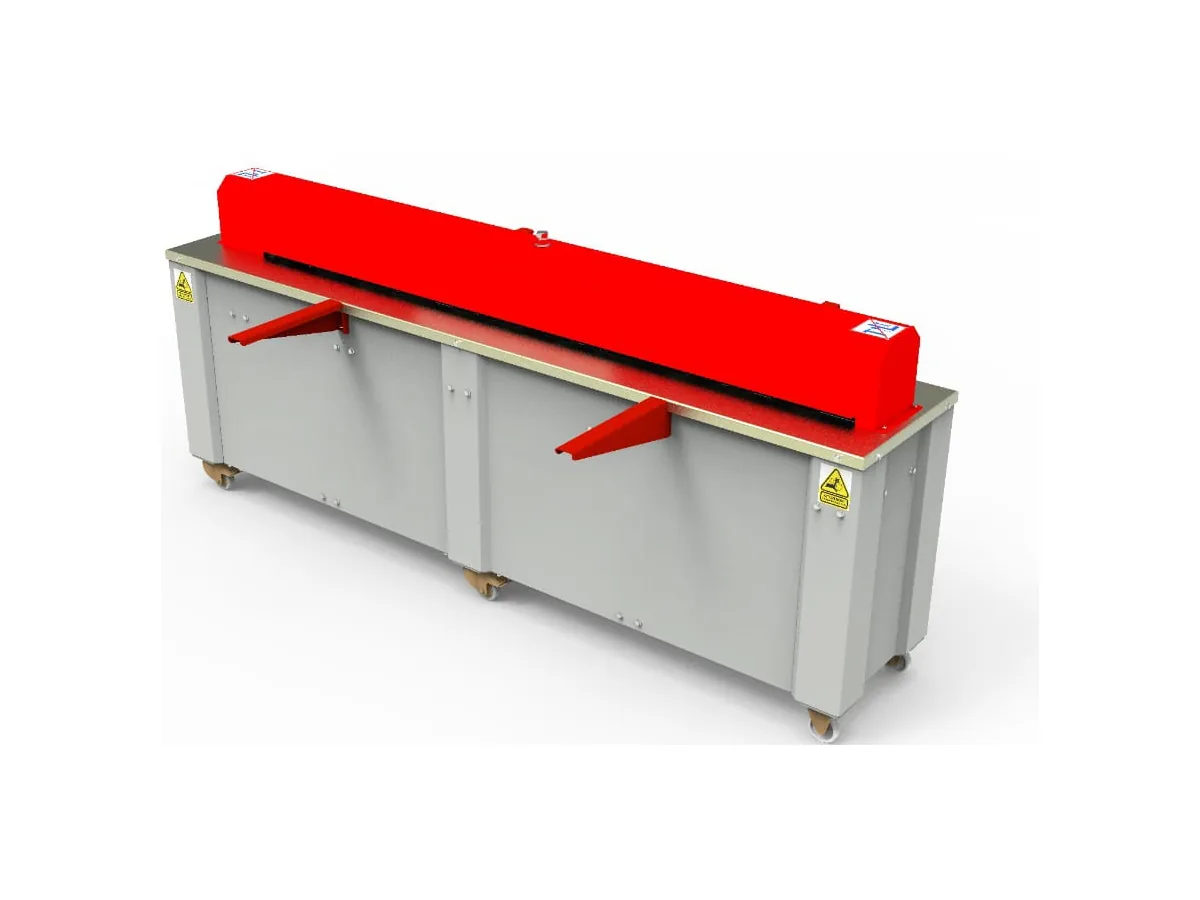

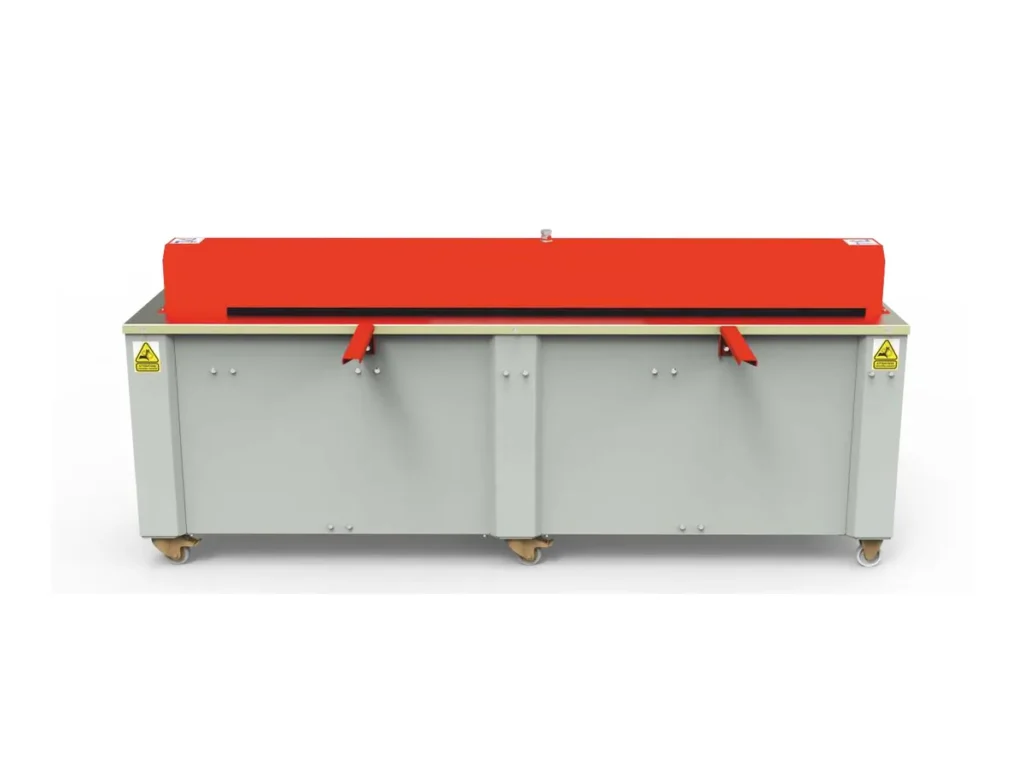

The Z Beading Machine is a duct beading machine that adds stiffness to the thin sheet used in ventilation ducts. It works at 15 m/min. The cylinders are fully roll-milled and can form aluminum up to 2 mm and stainless steel up to 1 mm, and you set the bead spacing as required. EBR METAL builds it in three working lengths, 1300, 2100 and 2600 mm, so you can match the machine to the widest sheet you bead. The Z in the name comes from the shape of the bead profile (catalogue: Z Beading Machine, LPM).
General Features
- Three working lengths: 1300, 2100 and 2600 mm
- Bead spacing can be set as required
- Fully roll-milled cylinders form up to 2 mm aluminum and 1 mm stainless steel
- Rolls made of rolled steel for long service life and resist bending
- Working speed 15 m/min
- Sheet thickness 0.40–1.20 mm (ST37 mild steel)
- Power supply 220 V / 1 Ph
Technical Specifications
| Model | Working length (mm) | Sheet thickness (mm) | Power (kW) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| LPM 1300 | 1300 | 0.40–1.20 | 0.37 | 1450 | 480 | 1050 | 210 |
| LPM 2100 | 2100 | 0.40–1.20 | 1.5 | 2240 | 530 | 1050 | 360 |
| LPM 2600 | 2600 | 0.40–1.20 | 1.5 | 2740 | 530 | 1050 | 410 |
Further specifications: working speed 15 m/min · aluminum up to 2 mm, stainless steel up to 1 mm · adjustable bead spacing.
Sheet thickness capacities are given for ST37 (S235JR) mild steel, yield strength 235 N/mm² (24 kg/mm²). EBR METAL reserves the right to change models and technical specifications without prior notice.
Z Beading or W Beading: Which Duct Beading Machine?
Both machines bead duct sheet at 15 m/min. The Z Beading Machine (LPM) comes in three working lengths from 1300 to 2600 mm and lets you set the bead spacing. At 210–410 kg it is the lighter and more compact of the two. The W Beading Machine (WBM) has working widths of 2000 and 2500 mm and forms three bead forms: Z design, trapezoid design or U bead. It weighs 850–1050 kg.
Where It Fits in Your Duct Line
The auto duct lines bead the sheet inline with their own stiffening units, for example the Auto Duct Line Pro. When sheet is cut separately, for example on the Cut-to-Length Line, a standalone sheet metal beading machine adds the stiffening before the edges go to the Pittsburgh Lock Former. The full sequence is on the HVAC Duct Production Line page.
When SMACNA calls for beading, why beads do not replace reinforcement and how bead profiles compare is explained in our guide Duct Beading: Why Rectangular Ducts Are Beaded.
Frequently Asked Questions
What is the difference between Z beading and W beading machines?
The Z Beading Machine (LPM) offers working lengths of 1300, 2100 and 2600 mm with adjustable bead spacing. The W Beading Machine (WBM) offers working widths of 2000 and 2500 mm and forms Z, trapezoid or U bead forms. Both run at 15 m/min.
Which working length do I need?
Choose the length that covers your widest sheet: 1300 mm (LPM 1300), 2100 mm (LPM 2100) or 2600 mm (LPM 2600).
Can it bead aluminum and stainless steel?
Yes. The roll-milled cylinders form aluminum up to 2 mm and stainless steel up to 1 mm. For ST37 mild steel the range is 0.40–1.20 mm.
Can the bead spacing be changed?
Yes, the bead spacing can be set as required.
