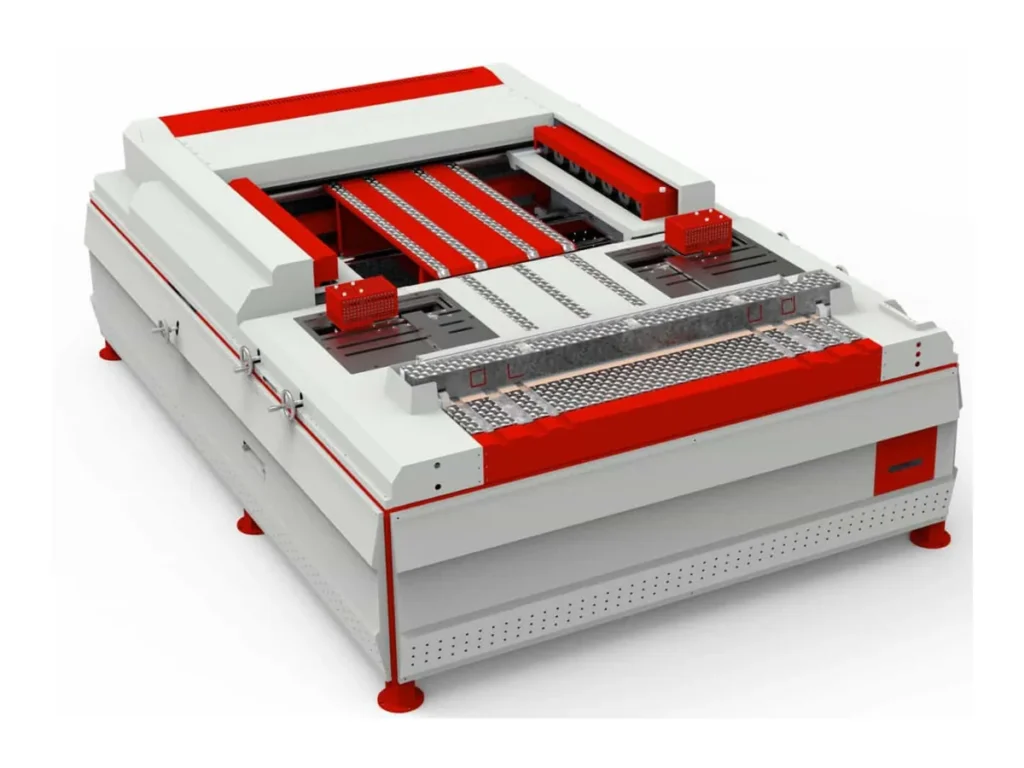

The Auto Duct Line with Notching & Cleat Forming is an automatic duct line that bends and cuts coil sheet into rectangular and square duct and notches it for self-flanged duct. C-cleats come from a C-cleat unit in the same machine. After forming, the line closes the duct lock too. That covers ducts with separate slip-on flange profiles as well as self-flanged ducts. Notching is hydraulic, with four dies (two right, two left). The line is PLC controlled, carries a 3-coil selector and runs on an 80 bar hydraulic unit with no compressed air (catalogue: Auto Duct Former with Notching & Cleat System, ADF-NC).
General Features
- C-cleat unit for easy, fast and complete production
- Closes the duct lock (seam) after the duct is formed
- Hydraulic notching with 4 dies (2 right, 2 left) performs all notching required for self-flanged ducts
- Produces ducts with separate slip-on flange profiles and self-flanged ducts
- 3-coil selector: three coils of different thicknesses can be loaded
- Fully automatic operation with PLC control, with two sheet driver units, two stiffening units and a straightener
- Servo motor, servo reducer and hydraulic system
- Label printing unit and total consumption memory unit
- Hydraulic unit at 80 bar, no compressed air required
- Seam types: Pittsburgh, snap lock and Nulock
Technical Specifications
| Model | Sheet thickness (mm) | Min. duct size (mm) | Motor power (kW) | Dimensions W × L × H (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ADF-NC | 0.5–1.2 | 100 × 100 | 2.2 | 2000 × 3000 × 1500 | 4250 |
Further specifications: feeding speed 6 m/min · 250 × 250 mm duct ≈ 1.35 min · up to 650 m²/day (8 h) · hydraulic unit 80 bar, no compressed air · notching: hydraulic, 4 dies (2 right, 2 left).
Sheet thickness capacities are given for ST37 (S235JR) mild steel, yield strength 235 N/mm² (24 kg/mm²). EBR METAL reserves the right to change models and technical specifications without prior notice.
How the Auto Duct Line with Notching & Cleat Forming Handles C-Cleats

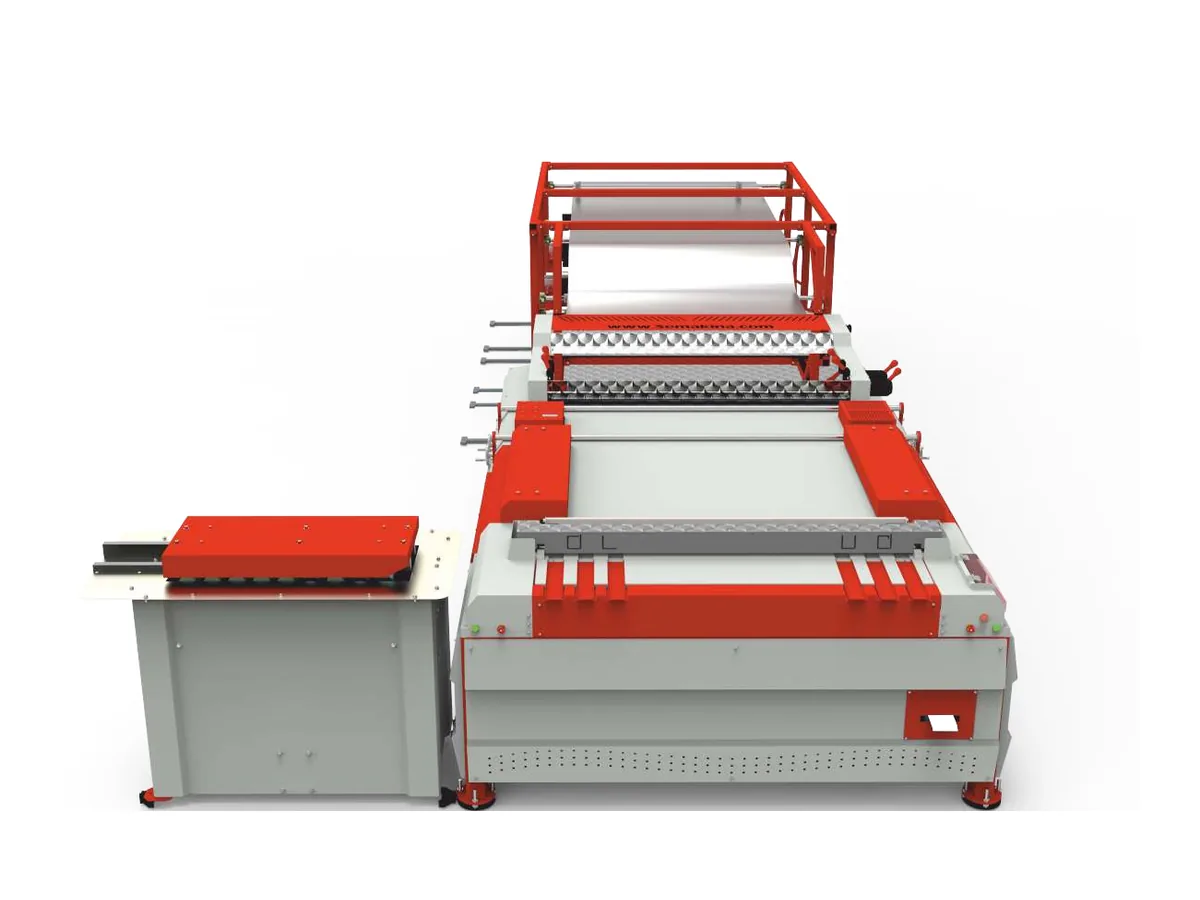

The ADF-NC has everything the Auto Duct Line with Notching has, plus a C-cleat unit. Notched duct sheet and C-cleats come from the same machine, and the ADF-NC closes the duct lock after forming as well. The added unit makes this line 3000 mm long, where the other auto duct lines measure 2000 mm.
Where It Fits in Your Duct Line
The line takes coil from the decoiler. Self-flanged parts go on to the TDF Flange Forming Machine. The ADF-NC closes the duct lock itself after forming. For duct made on other machines, the Duct Seam Closer closes the locks of square and rectangular ducts. If you have no need for C-cleats, the Auto Duct Line with Notching does the notching alone. For straight duct without notching, see the Auto Duct Line with 3-Coil Selector. The complete sequence is on the HVAC Duct Production Line page.
Frequently Asked Questions
What is the difference between the ADF-NC and the ADF-N?
The ADF-NC adds a C-cleat unit and also closes the duct lock after forming. Both lines notch for self-flanged duct with a hydraulic 4-die unit, have the 3-coil selector and reach about 1.35 minutes for a 250 × 250 mm duct.
Which duct types can it produce?
Rectangular and square ducts, ducts with separate slip-on flange profiles, and self-flanged ducts, with Pittsburgh, snap lock or Nulock seams.
How much duct can it produce in a day?
At a feeding speed of 6 m/min, a 250 × 250 mm duct takes about 1.35 minutes, for up to 650 m² of duct in an 8-hour shift.
How much floor space does the machine take?
The machine measures 2000 × 3000 × 1500 mm (W × L × H) and weighs 4250 kg.
Does it need compressed air?
No. It runs on a hydraulic unit at 80 bar.
