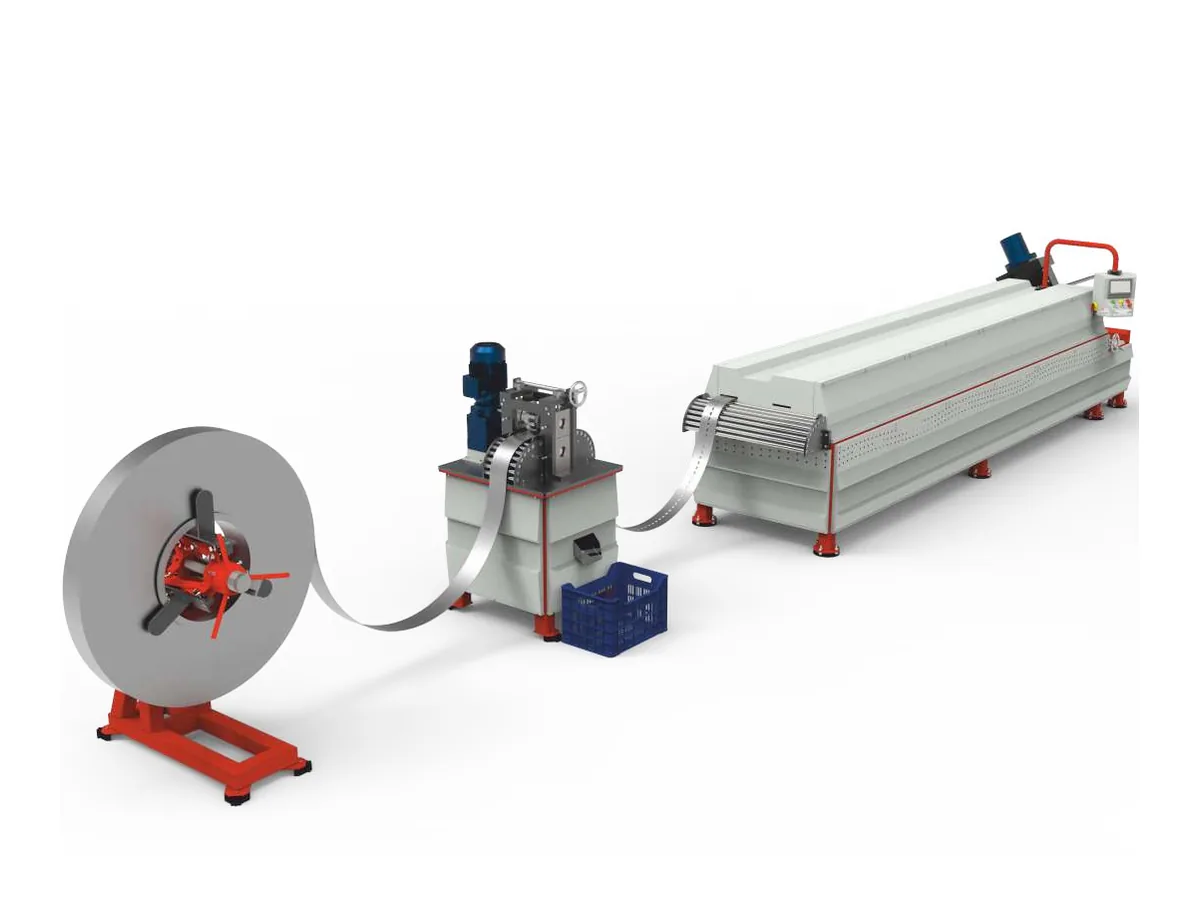

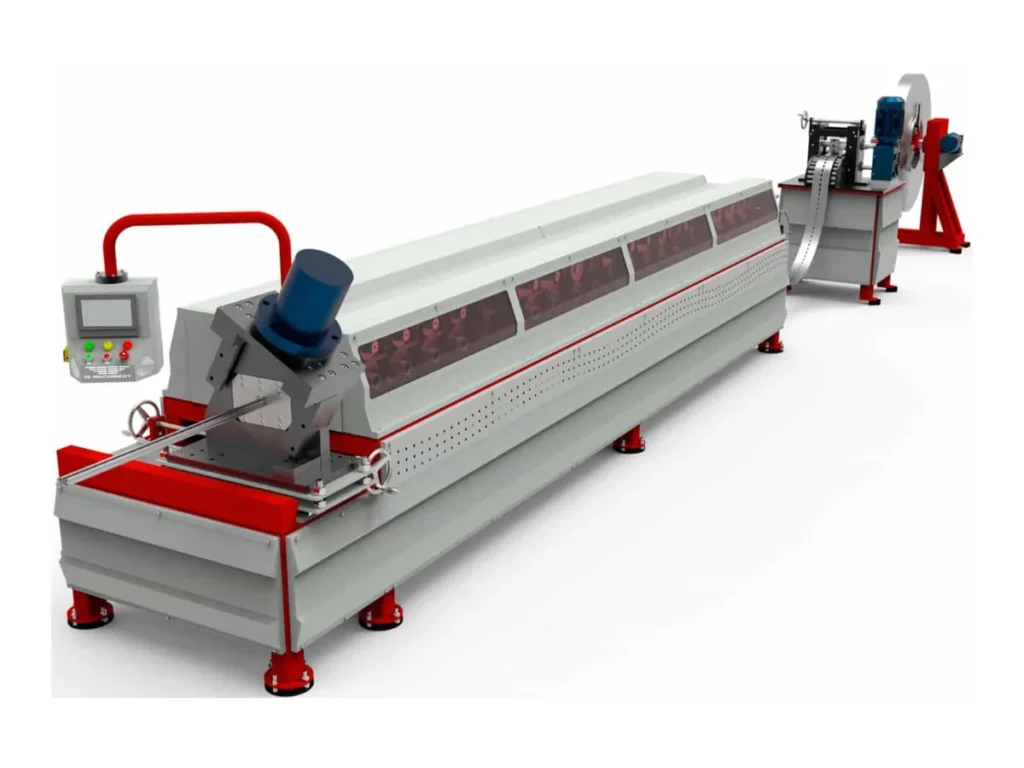

The C Profile Roll Forming Machine makes the profiles used to hang ventilation ducts. The operator enters the length and number of pieces on the PLC screen, and from there the machine runs fully automatically, forming, punching and cutting each piece. Hydraulic dies punch oval holes in the profile and a diamond-tipped saw cuts it without burrs. Every piece comes off the rolls ready to use. Besides C profiles it produces U and L profiles from 0.60–1.20 mm sheet, with other thicknesses on request (catalogue: C Profile Machine, CPR).
General Features
- Produces C, U and L profiles for hanging ventilation ducts

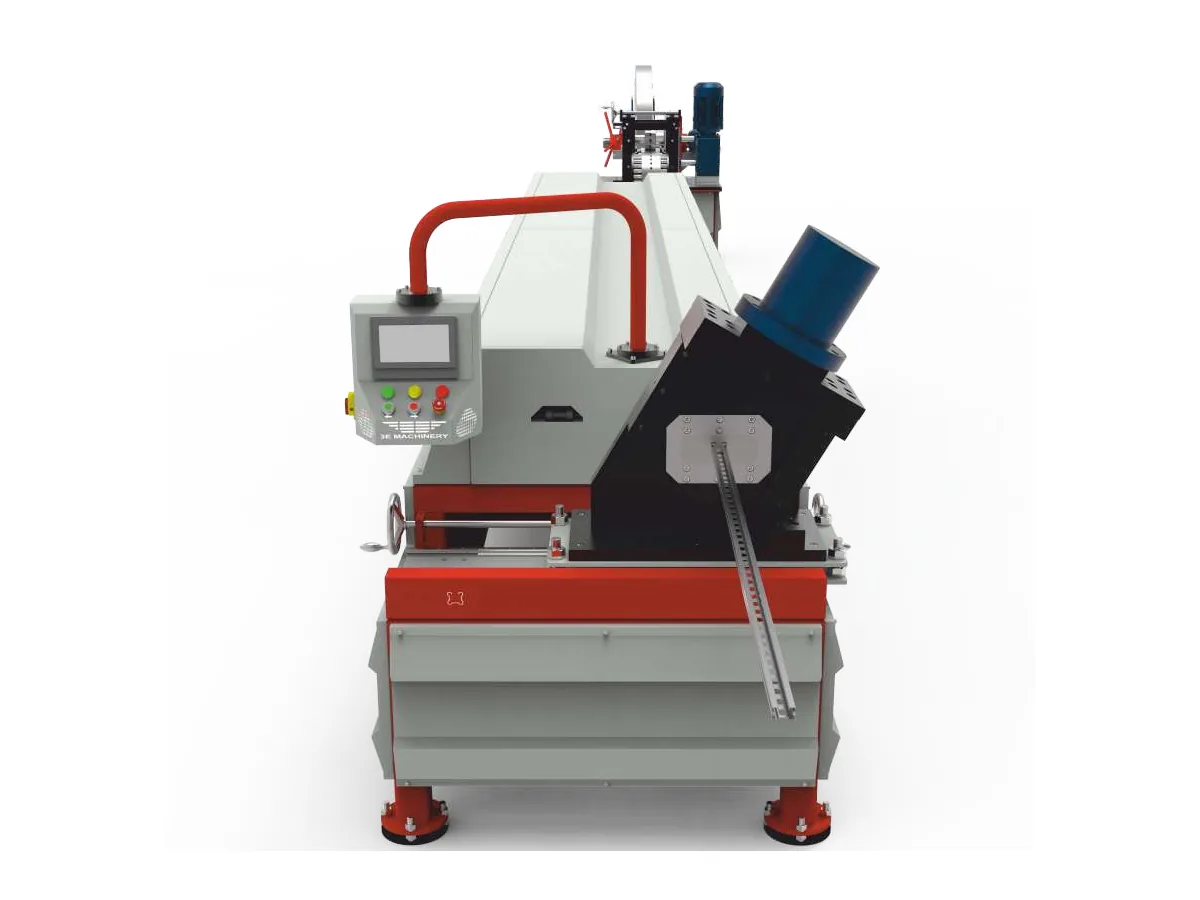

- Length and quantity set on the PLC screen, fully automatic run
- Hydraulic dies punch oval holes in the profile

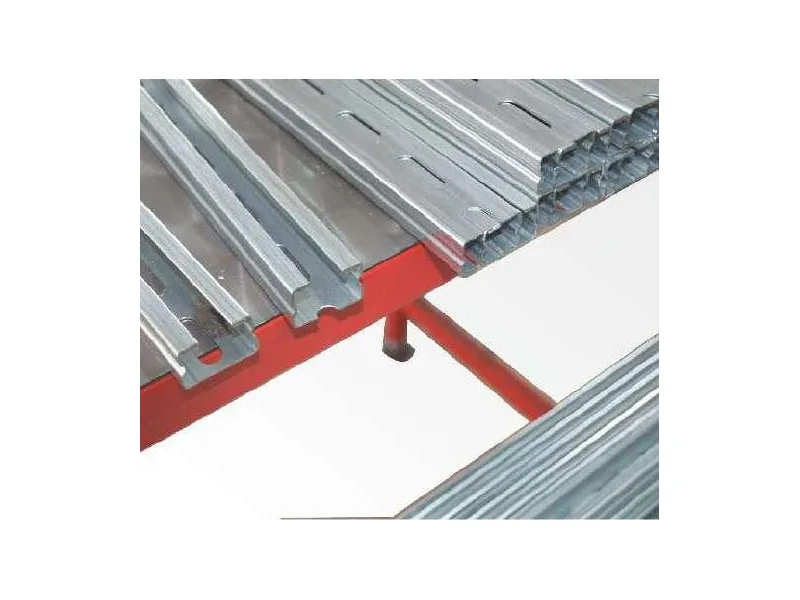

- With the hydraulic system and dies, profiles come off the rolls ready to use in one pass
- Burr-free cutting with a diamond-tipped saw
- Bending rolls made of 2379 cold work tool steel, with high wear and pressure resistance
- Sheet thickness 0.60–1.20 mm, other thicknesses on request
- Power supply 380 V / 3 Ph / 50 Hz
Technical Specifications
| Model | Sheet thickness (mm) | Power (kW) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| CPR | 0.60–1.20 | 7.5 | 5500 + 4000 | 1150 | 1200 | 2400 |
Further specifications: C, U and L profiles · oval holes punched by hydraulic dies · other sheet thicknesses on request.
Profile examples (width × height, sheet thickness):
- Example 1: 35 mm wide × 20 mm high, 0.8 mm sheet
- Example 2: 35 mm wide × 30 mm high, 1.5 mm sheet
The standard sheet range is 0.60–1.20 mm. Heavier sections such as the 1.5 mm example are available on request.
Sheet thickness capacities are given for ST37 (S235JR) mild steel, yield strength 235 N/mm² (24 kg/mm²). EBR METAL reserves the right to change models and technical specifications without prior notice.
Where It Fits in Your Duct Line
This machine makes the hangers, meaning the C, U and L profiles that support the ducts when they are hung on site. The duct itself is formed elsewhere in the shop. If you install your own duct, you can produce the hangers in-house alongside the duct line. It sits in the Flange & Beading group next to the TDF Flange Forming Machine and the Z Beading Machine. See the whole shop layout on the HVAC Duct Production Line page.
Frequently Asked Questions
Which profiles can the C profile roll forming machine make?
C, U and L profiles for hanging ventilation ducts.
How are length and quantity set?
On the PLC screen. The operator enters the length and the number of pieces, and the machine cuts that many.
Does it punch the holes too?
Yes. Hydraulic dies punch oval holes in the profile, so the pieces come off the rolls ready to use.
What sheet thickness does it take?
0.60–1.20 mm as standard. Other sheet thicknesses are available on request. For example, a 35 × 30 mm profile can be made in 1.5 mm sheet.
