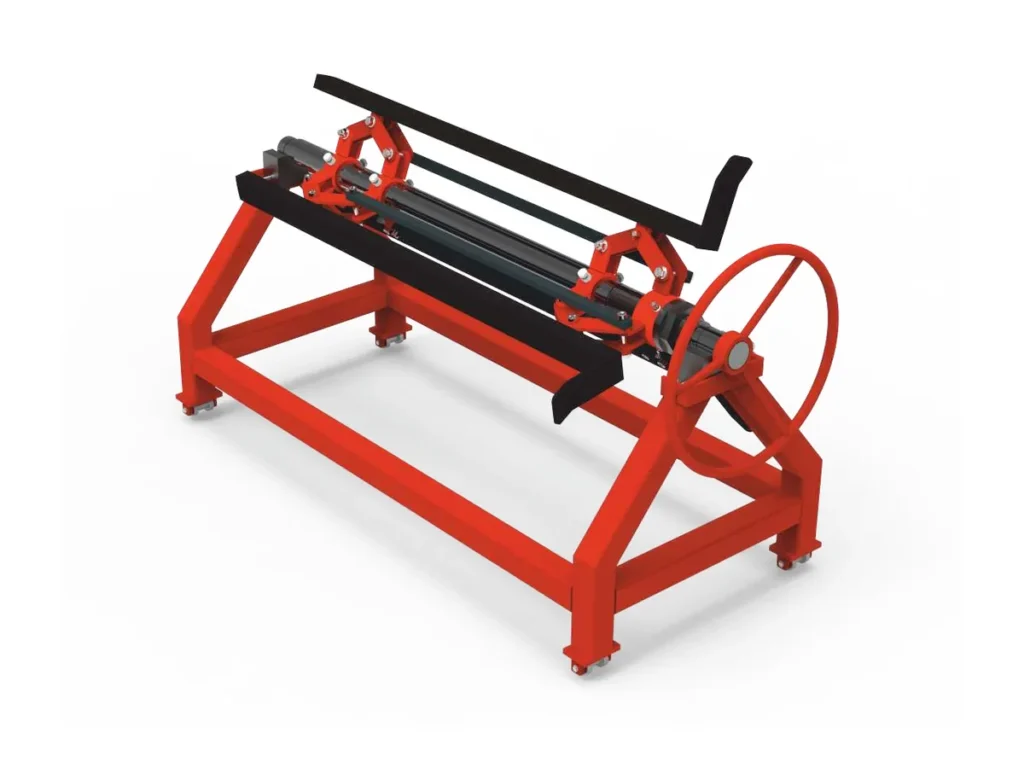

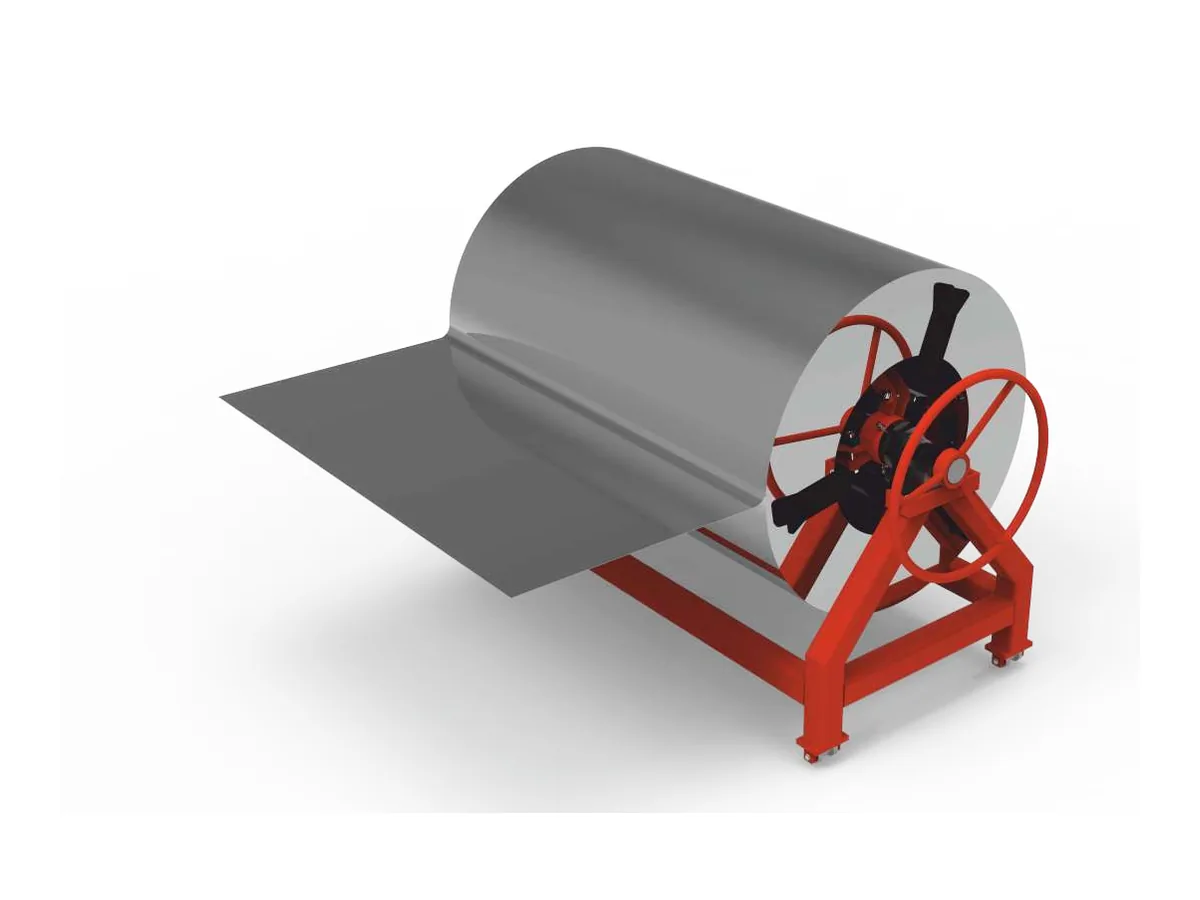

The UCR is a manual sheet metal decoiler with brake, also called an uncoiler. It holds the sheet metal coil and lets it unwind into the next machine on your line. It takes coils weighing up to 5 tons and up to 1500 mm wide, with a coil inner diameter of Ø508 mm. The brake stops the coil from unwinding when feeding stops, and a round control wheel moves the coil forward and back during flattening. You can order it fixed, on wheels or with a rail system (catalogue: Decoiler, UCR).
General Features
- Manual decoiler with brake
- Takes coils up to 5000 kg and up to 1500 mm wide
- Brake prevents the coil from unwinding when feeding stops
- Round control wheel for easy forward and backward movement during flattening
- Coil inner diameter Ø508 mm
- Available fixed, on wheels or with a rail system
Technical Specifications
| Model | Capacity (kg) | Width (mm) | Height (mm) | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|
| UCR | 5000 | 1500 | 1400 | 2100 | 200 |
Further specifications: coil inner diameter Ø508 mm · coil width up to 1500 mm · fixed, wheeled or rail-mounted versions.
Sheet thickness capacities are given for ST37 (S235JR) mild steel, yield strength 235 N/mm² (24 kg/mm²). EBR METAL reserves the right to change models and technical specifications without prior notice.
Where the Decoiler Fits in Your Duct Line
The decoiler is the first step: the coil sits on it and feeds into the machine that straightens and cuts the sheet. In a rectangular duct shop that machine is usually an automatic line such as the Auto Duct Line Pro, or the Cut-to-Length Line for flat blanks. The full sequence is on the HVAC Duct Production Line page.
Frequently Asked Questions
Is an uncoiler the same as a decoiler?
Yes. Both names describe the machine that holds a coil and lets the sheet unwind into the next machine.
What coil weight and width does the UCR take?
Coils up to 5 tons (5000 kg) and up to 1500 mm wide.
What coil inner diameter does it fit?
Ø508 mm.
Can it be moved?
It comes in three versions: fixed, on wheels or with a rail system.
What stops the coil from overrunning?
A brake holds the coil when feeding stops, so it does not keep unwinding.
Is the UCR motorized?
No. The UCR is a manual decoiler with a brake.
