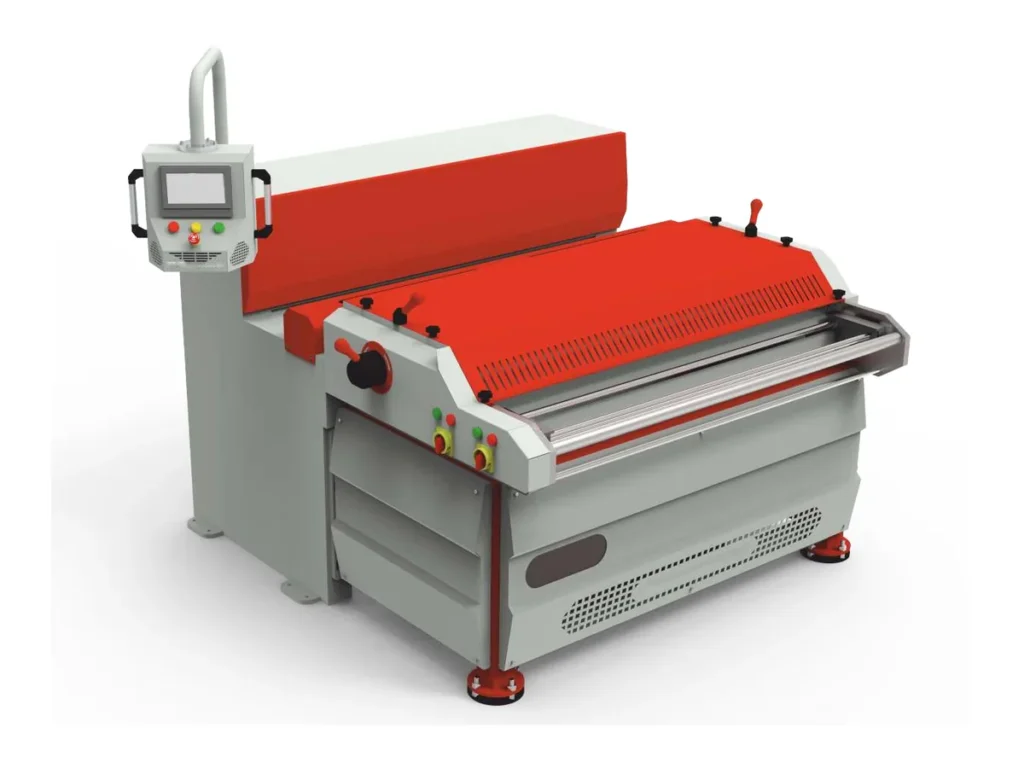

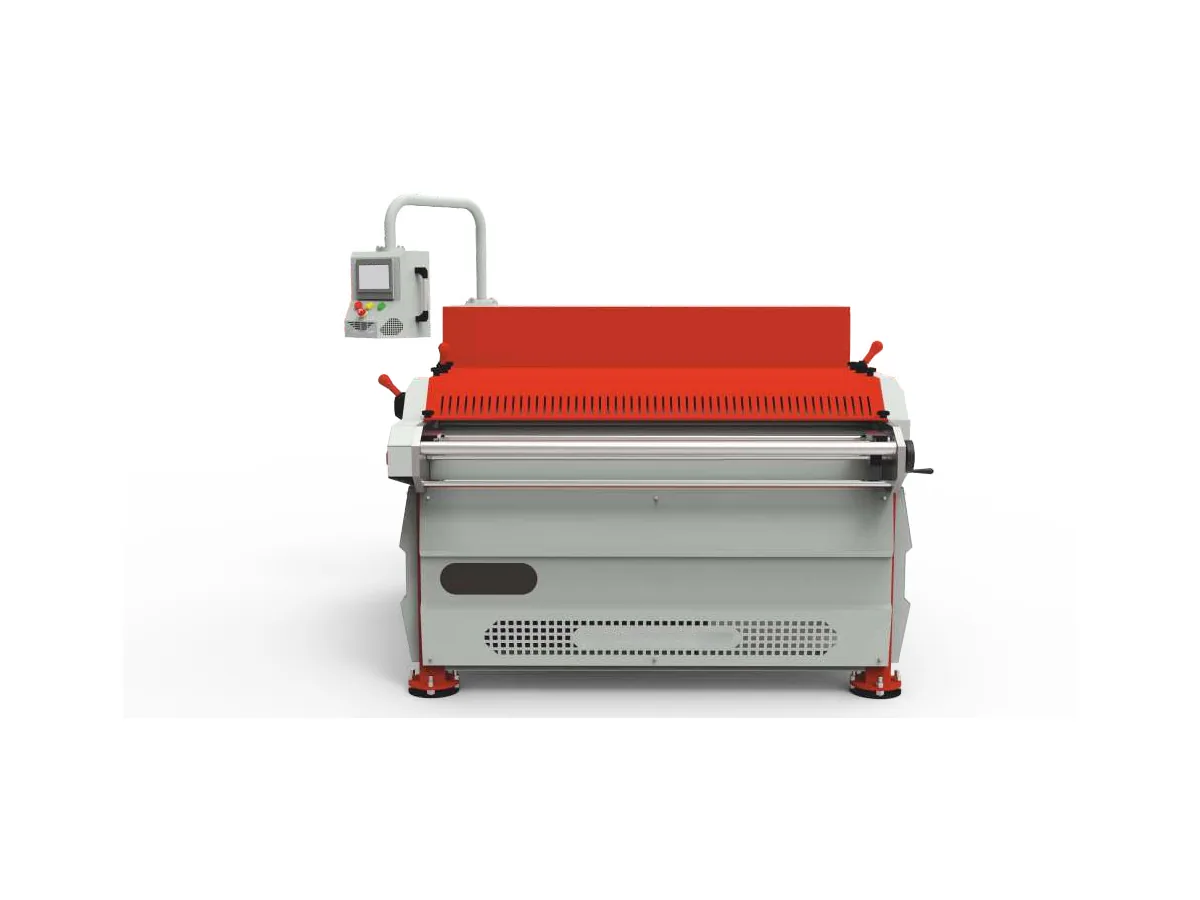

The CTL cut-to-length line flattens galvanized, stainless and aluminum coil and cuts it into sheets of the size and quantity you need. You enter the lengths and piece counts on the PLC screen, and a servo motor drives the cut to a tolerance of ±1 mm. The blades are made of 2379 cold work tool steel and cut without burrs. Sheet range is 0.50–3.00 mm. It suits duct shops that want sheet metal cut to length and ready for the next machine (catalogue: Cut-to-Length Machine, CTL).
General Features
- Any quantity and length can be entered on the PLC screen
- Servo motor for accurate cutting
- Blades of 2379 cold work tool steel, with high wear and pressure resistance
- Burr-free cutting
- Cutting capacity: 1.5 mm stainless and 3 mm galvanized sheet
- Working speed approx. 6 m/min, cutting tolerance ±1 mm
Technical Specifications
| Model | Electricity (V/Ph/Hz) | Sheet thickness (mm) | Motor power (kW) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| CTL | 380 V / 3Ph / 50 Hz | 0.50–3.00 | 2 | 6750 | 2100 | 1400 | 2000 |
Further specifications: cutting capacity 1.5 mm stainless / 3 mm galvanized · working speed approx. 6 m/min · cutting tolerance ±1 mm.
Sheet thickness capacities are given for ST37 (S235JR) mild steel, yield strength 235 N/mm² (24 kg/mm²). EBR METAL reserves the right to change models and technical specifications without prior notice.
Where the Cut-to-Length Line Fits in Your Duct Line
The cut-to-length line turns coil into flat blanks of a set length. Shops without an automatic line use these blanks for the next steps, such as beading on the Z Beading Machine and lock forming on the Pittsburgh Lock Former. If you want straightening, beading, cutting and folding in one machine, see the Auto Duct Line Pro. Coil handling is covered on the Decoiler (Uncoiler) page, and the full sequence is on the HVAC Duct Production Line page.
Frequently Asked Questions
Which materials can the cut-to-length line process?
Galvanized, stainless and aluminum coil. It flattens the coil and cuts it to the required dimensions and quantities.
What thickness can it cut?
The table range is 0.50–3.00 mm. Cutting capacity is 1.5 mm for stainless and 3 mm for galvanized sheet.
How accurate is the cut, and how fast does it run?
Cutting tolerance is ±1 mm, and the working speed is approximately 6 m/min. A servo motor drives the cut.
How do you set lengths and quantities?
On the PLC screen. Any length and any quantity can be entered.
