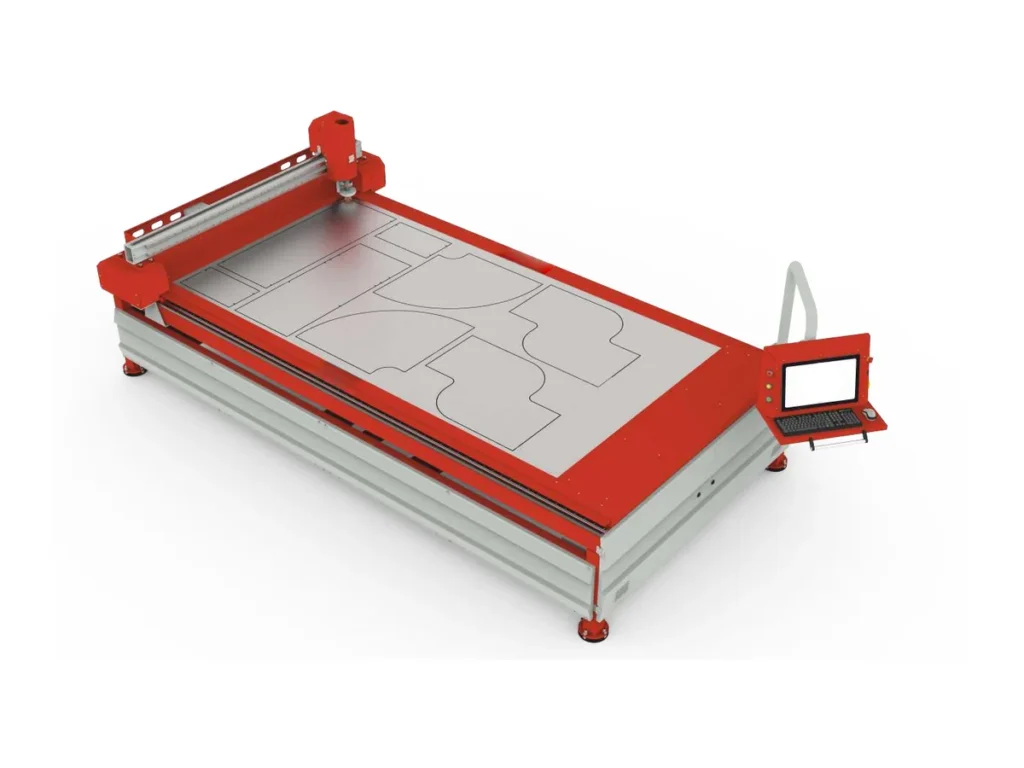

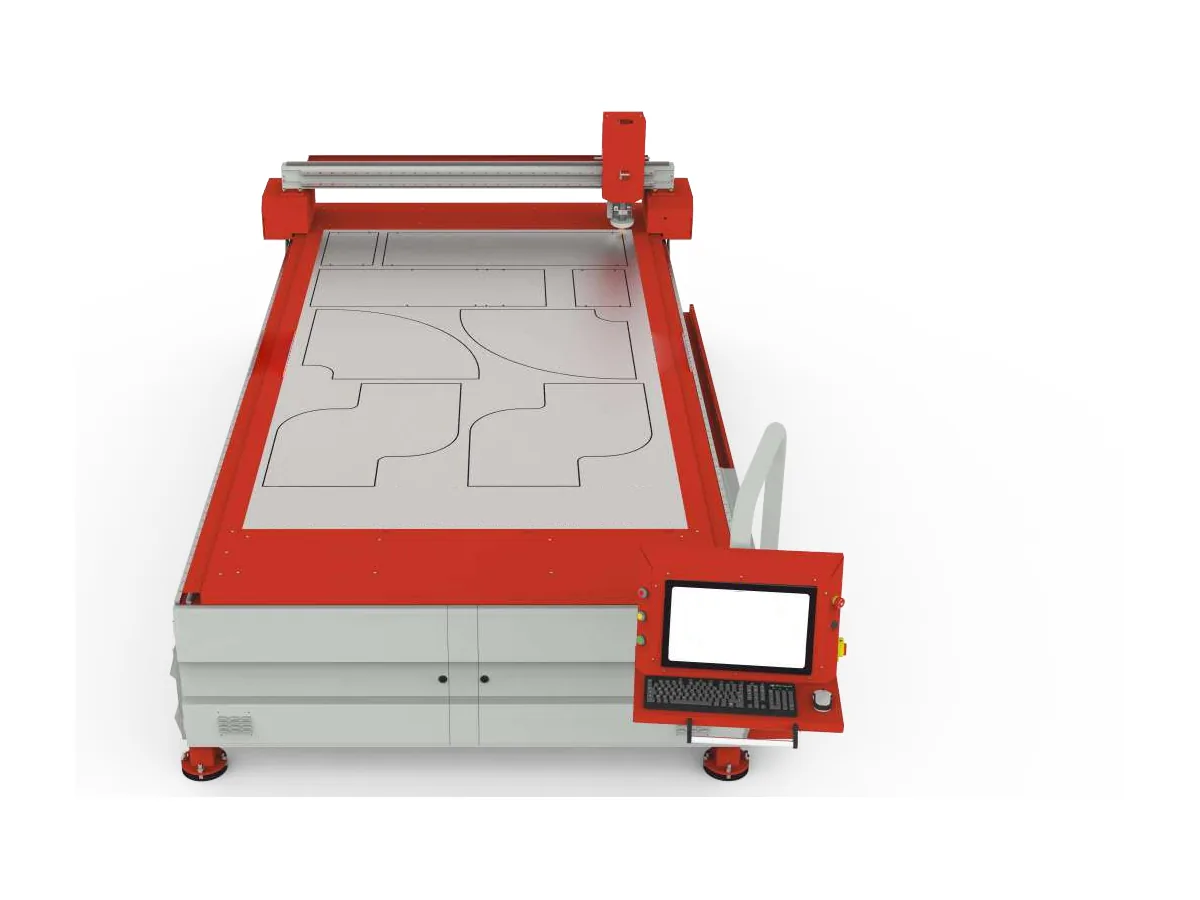

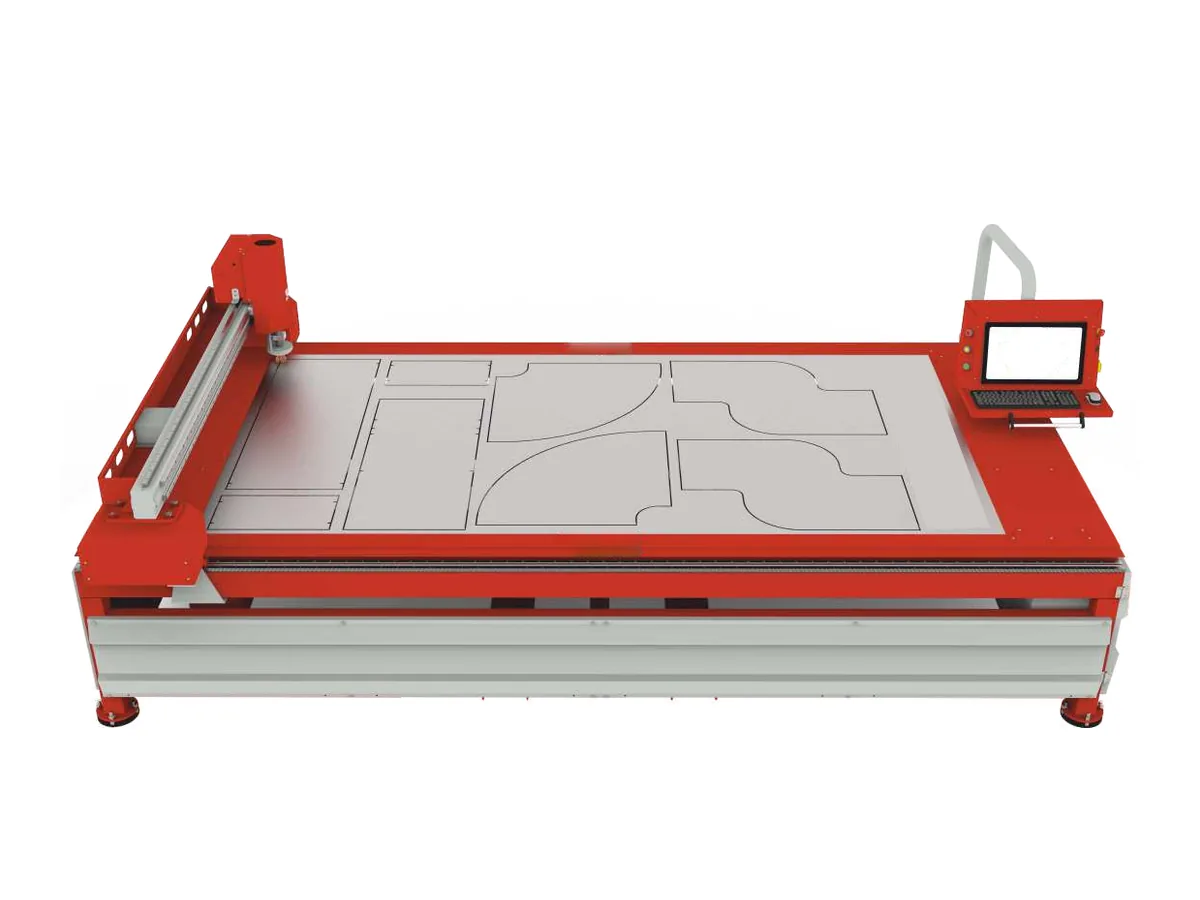

The CPC 1530 is a CNC plasma cutting table developed for ventilation duct manufacturers, sign and advertising companies and other shops that work with thin sheet metal. It cuts flat parts from sheets up to 1500 × 3000 mm. A Windows-based CNC control runs it. Leadshine stepper motors drive all axes, two of them on the bridge, and the moving parts travel on HIWIN linear rails to keep the cut path accurate. Maximum cutting capacity is 6 mm (catalogue: CNC Plasma Cutter, CPC 1530).
General Features
- Windows-based CNC control unit
- All axes are driven by Leadshine stepper motors, with double stepper motors on the bridge
- Moving parts run on HIWIN linear rails for accurate cutting
- Pneumatic Z axis
- Rapid traverse speed of 20 m/min, cutting speed 7–9 m/min
- Working area 1500 × 3000 mm
- Maximum cutting capacity 6 mm
- Sheet range by material: carbon steel (black sheet, cold-rolled DKP or hot-rolled pickled HRP) 0.5–6 mm, galvanized steel and aluminum 0.5–5 mm, stainless steel 0.5–3 mm
Technical Specifications
| Specification | CPC 1530 |
|---|---|
| Power (kW) | 11 |
| Voltage-frequency (V/Ph/Hz) | 380 V / 3 Ph / 50 Hz |
| Current (A) | 30 |
| Air requirement (L/min) | 189 |
| Air pressure (bar) | 7 |
| Working area (mm) | 1500 × 3000 |
| Max. working speed (m/min) | 20 |
| Cutting speed (m/min) | 7–9 |
| Maximum cutting capacity (mm) | 6 |
| Sheet thickness, carbon steel (black DKP/HRP) (mm) | 0.5–6 |
| Sheet thickness, galvanized and aluminum (mm) | 0.5–5 |
| Sheet thickness, stainless steel (mm) | 0.5–3 |
| Dimensions L × W × H (mm) | 4500 × 2400 × 1400 |
| Weight (kg) | 1000 |
Further specifications: rapid traverse speed 20 m/min · pneumatic Z axis · Windows-based CNC control.
Sheet thickness capacities are given for ST37 (S235JR) mild steel, yield strength 235 N/mm² (24 kg/mm²). EBR METAL reserves the right to change models and technical specifications without prior notice.
Where It Fits in Your Duct Line
The plasma cutting table handles the flat parts that a coil line does not make, cut along programmed paths. Paired with the Plasma Sheet Feeder, it can take sheet straight from the coil instead of standard plates, so less material ends up as scrap. Other cutting and coil machines are on the Cutting & Coil Handling page, and the full sequence is on the HVAC Duct Production Line page.
Frequently Asked Questions
What sheet thickness can the CPC 1530 cut?
Up to 6 mm in carbon steel (black sheet). Galvanized steel and aluminum are cut from 0.5 to 5 mm, and stainless steel from 0.5 to 3 mm.
What is the maximum sheet size?
The working area is 1500 × 3000 mm.
Does the plasma table need compressed air?
Yes. It needs 189 L/min of air at 7 bar.
What power supply does it need?
380 V, 3-phase, 50 Hz. Power is 11 kW and current 30 A.
Can it cut from coil instead of standard sheets?
Yes, with the Plasma Sheet Feeder, which feeds sheet from the coil to the table in the length you need.
